Service Assurance

Maser offer a wide range of service assurance tools that monitor and help mobile, Ethernet, optical and HFC (cable) operators optimise the edge of their network.

Our solutions enhance your network performance (QOS) and, most importantly, provide a broader picture of the customer experience (QOE). From standalone bench or lab test equipment, to portable handheld devices, we address applications  in the field, lab or service centre.

Maser's range of IT&T solutions ensure that your network and IT infrastructure provides a better quality of experience to users and increased profitability.

Solutions & Applications



Mobile Drive Testing

Anite is a leading supplier of test and measurement solutions to the international wireless market. Anite provides testing, measurement, optimisation and analytics systems based on its specialist sector knowledge and its proprietary software and hardware products.

Customers include major manufacturers of mobile devices, chipsets and network equipment, mobile network operators (including all 3 in Australia), regulatory authorities, and independent test houses.

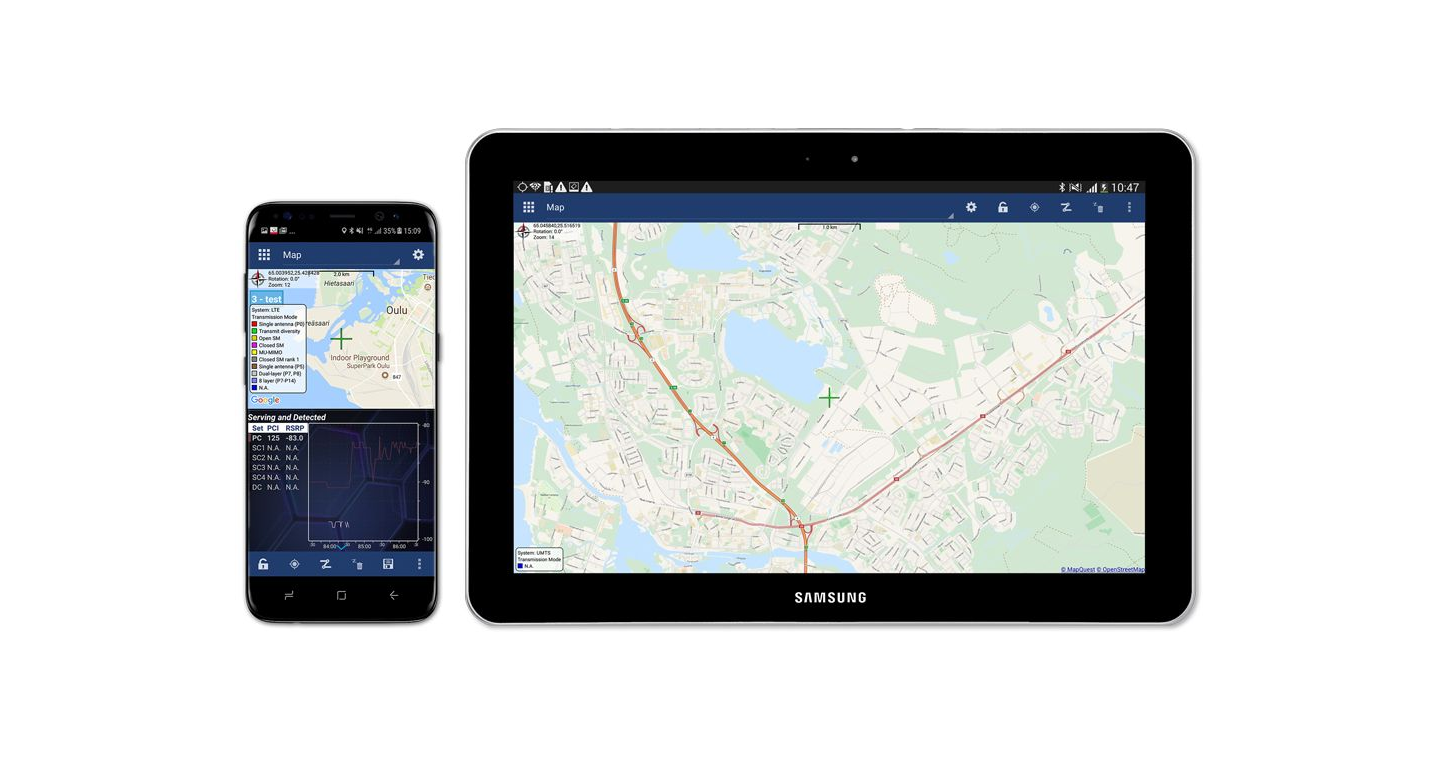

ANITE NEMO 'Handy' - The World's Most Widely Used Handheld Drive Test Tool

For greater mobility, economy and ease in network performance measurement with a handheld drive test tool

Nemo Handy offers smart and discreet solutions for thorough drive test measurements on the wireless air interface and mobile application quality-of-service/quality-of-experience QoS/QoE.

Nemo Handy

The handheld drive test tool, Nemo Handy, is highly suitable for performing measurements both outdoors and in busy and crowded indoor spaces while being simultaneously used as a regular mobile phone. Nemo Handy provides you with the best real-time measurement visualization on the handheld market

In addition to a rich variety of real-time displays, all RF and signaling data is logged to a phone’s internal storage or memory card. Log files are made available in Nemo File Format that allows easy post-processing with Nemo Outdoor playback, Nemo Analyze, or third-party post-processing tools.

Nemo Handy Brochure
ANITE NEMO 'Outdoor' - Powerful Drive Test Tool for Measuring & Monitoring Wireless Networks

Nemo Outdoor offers a broad range of testing options and support for all the newest technologies including 3 carrier aggregation, LTE Cat 12 devices, VoLTE/ ViLTE, VoWiFi/ViWiFi, 4x4 MIMO, and eMBMS testing.

Anite nemo Outdoor

Nemo Outdoor allows operators to test and verify the capacity of LTE-A wireless networks and it comes with an incomparable support for over 300 test terminals and scanning receivers. Nemo Outdoor is highly suitable for targeted network problems in all the established and emerging phases of the network life cycle. It can be expanded to cover extensive and powerful measurements from drive testing to benchmarking and QoS measurements. All of this on a single laptop-based software platform.

In addition to drive test and benchmarking measurements, the Nemo Outdoor platform is expandable to support voice and video quality measurements, including streaming video analysis with the PEVQ-S algorithm. Nemo Outdoor also offers tools for various troubleshooting and verification tasks, such as DAS anomaly analysis, real-time RF ingress and missing neighbor detection, pilot pollution analysis, and GSM interference analysis.

Nemo Outdoor Brochure

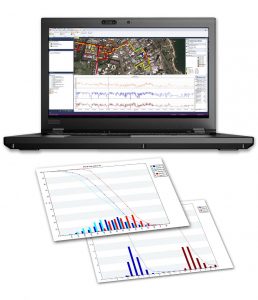

ANITE NEMO 'Analyze' - for professional post-processing of drive test data




Inbuilding Coverage Testing

Maser's In-building Coverage Solutions (IBC) collect wireless network data for planning, benchmarking, analyzing and improving in-building cells.

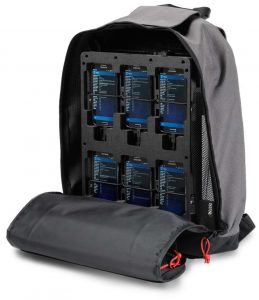

ANITE NEMO 'Walker Air' - For Indoor Benchmarking of Wireless Networks

Efficient indoor benchmarking and coverage measurement with Nemo Walker Air

Nemo Walker Air is a portable tool for indoor benchmarking and multi-technology measurements.

Nemo Walker Air
Nemo Walker Air is an Android-based indoor benchmarking system that enables performing extensive synchronized measurements. One tablet acts as a Master, conducting measurements by sending commands to up to seven test terminals via a Bluetooth connection. Nemo Walker Air features include POLQA and PESQ voice quality testing, PEVQ-S video quality testing, forcing features, YouTube video streaming, and live map support with BTS icons.

Nemo Walker Air provides you with the best real-time measurement and benchmarking by using multiple technologies. Nemo Walker Air’s extensive application testing features offer full application-level metrics on voice calls, voice quality, FTP/HTTP data transfers, Iperf, HTML browsing, YouTube streaming, Facebook testing, LinkedIn testing, Twitter testing, Instagram testing, email testing, SMS & MMS messaging, and ping.




ANITE NEMO 'IBC' - In-Building Coverage Meter

Anite’s Nemo In-Building Coverage Meter (IBC Meter) enables operators’ sales staff to easily verify the quality of wireless services while in the field, saving both time and money

Developed mainly for operators’ corporate sales executives, the application enables fast ‘test and check’ to identify how well the network performs in premises, instantly verifying the quality of network services and automatically reporting data back to the operator’s network optimization team.

Nemo In-Building Coverage Meter (IBC Meter) is a fast and easy to use Android application for instantly testing indoor coverage and performance. It is a custom-made tool for operators’ corporate sales executives, needing to verify how well the network performs in premises. Once measurements are complete and a description of the different network layers is given, Nemo IBC Meter creates a report which can be forwarded to the team responsible for network performance. The data can also be further refined and visualized in Anite’s Nemo Analyze post-processing tool or in any other post-processing tool supporting the Nemo file format.

Nemo Inbuilding Coverage Meter Brochure



ANITE NEMO 'Analyze' - For Professional Post-Processing of Drive Test Data





Consultix WTX Transmitters - One Transmitter for all Bands

 Test Transmitters

Test Transmitters

Consultix provides a family of field proof test transmitters that are simply portable RF signal generators yet in a form that is battery-operated and heavy-duty.

The WTX CW test transmitter family is particularly designed for field applications such as Inbuilding site modeling (model calibration), DAS injection / testing, walk-testing as well as outdoor path model tuning- thanks to its broad range of optional power amplifiers.

The WTX Family of CW Transmitters (handheld signal generators) offers a precise RF test signal in a form ranging from WCDMA modulation to a multi-band and multi-port CW Carrier.

Supporting a broad frequency range from 300 to 3000 MHZ in a single unit, hence covering most of wireless bands of 2G (GSM), 3G (UMTS), 4G (LTE) as well as WIFI 2.4 GHz with a compact handheld device.

The keypad and LCD provide direct user control for maximum ease and handiness that enable efficient and convenient operation

Consultix WTX Family has the following attributes common in all models :

  • High Accuracy
  • Handhled & Lightweight
  • Battery operated
  • Ergonomic User Interface
  • Modular and common in its internal modules to save user investments, and enhance logistics cycle
  • S/W and H/W upgradeable

Family Models (note the table scrolls to the right to reveal more details on each product):

Transmitter modelFrequency RangeNO. of RF portsMaximum Output Power**ModulationsWeightUser Interface
WTX-05Band selection of 700, 850, 900, 1800, 1900, 2100, and 2600 MHz *120 dBmCW and WCDMA700 gmLCD & Keypad
WTX-35-A300 to 3000 MHz120 dBmCW700 gmLCD & Keypad
WTX-35-B400 to 2700 MHzUp to 4 simultaneously15 dBmCW700 gmLCD & Keypad
WTX-35-C60 to 3000 MHz120 dBmCW700 gmLCD & Keypad
illuminator400 to 6000 MHz2 (one at a time)15 dBm (port 1 to 6 GHz)CW, WCDMA, and LTE2 KgmTouch Screen
40 dBm (port 2 to 2.7 GHz)(3GPP Standard)
Amplifier options0.5 to 3.7 GHz1 or 25 to 50 Watts1.5 KgmFrom TX

Click below to download datasheets:

Mobile Benchmarking & Customer Experience

ANITE NEMO 'Walker Air' - For Indoor Benchmarking of Wireless Networks

Efficient indoor benchmarking and coverage measurement with Nemo Walker Air

Nemo Walker Air is a portable tool for indoor benchmarking and multi-technology measurements.

Nemo Walker Air
Nemo Walker Air is an Android-based indoor benchmarking system that enables performing extensive synchronized measurements. One tablet acts as a Master, conducting measurements by sending commands to up to seven test terminals via a Bluetooth connection. Nemo Walker Air features include POLQA and PESQ voice quality testing, PEVQ-S video quality testing, forcing features, YouTube video streaming, and live map support with BTS icons.

Nemo Walker Air provides you with the best real-time measurement and benchmarking by using multiple technologies. Nemo Walker Air’s extensive application testing features offer full application-level metrics on voice calls, voice quality, FTP/HTTP data transfers, Iperf, HTML browsing, YouTube streaming, Facebook testing, LinkedIn testing, Twitter testing, Instagram testing, email testing, SMS & MMS messaging, and ping.


ANITE NEMO 'INVEX II' - Application-Rich Wireless Network Benchmarking

Mobile benchmarking and drive test capacity for LTE, LTE-A, Cat 11, and VoLTE smartphones

Nemo Invex II mobile benchmarking system combines powerful intuitive software and scalable hardware to create a superior solution for benchmarking wireless networks and devices. Quick and easy to deploy, Nemo Invex II provides critical quality-of-service (QoS) measurements and a wide variety of quality-of-experience (QoE) service testing, including the latest voice and video quality measurement algorithms such as PESQ and POLQA

Nemo Invex II

Nemo Invex II is the state-of-the-art 2nd generation benchmarking solution for testing wireless networks and devices. The system enables testing with up to 50 test devices simultaneously with lower power consumption per device, giving operators, network vendors, regulators, and contractors the possibility to benchmark voice and data services on all major wireless technologies in one test drive. The optional Nemo Media Router, the Anite proprietary (patent pending) communications interface and application developed for Android-based smartphones, reduces the total power consumption of the benchmarking system as fewer PC modules (UICs) are needed.

Nemo Invex II Brochure



ANITE NEMO 'CEM' - Professional Customer Experience Monitoring

Monitoring mobile services real-time from the customer perspective.

Nemo CEM Solution is a powerful, flexible, and scalable set of tools for monitoring wireless network performance and services from the end user-point of view. With the Nemo CEM Solution operators can easily and discreetly collect QoE data directly from their customers while they are using their smartphones. With the solution embedded on the customers’ smartphones, operators can more confidently guarantee a high quality of service, hence improving the quality of end-user experience.



Nemo-CEM-Solution_0 Complete set of tools for CEM
• Nemo Qmon provisioned and installed over the air (OTA) on commercial
smartphones calculates KPIs based on the subscriber location, network scenario,
and session criteria.
• Nemo Qview server aggregates KPIs transferred via HTTP from one or a million
of smartphones simultaneously. Dashboards and reports can be customized
thanks to an easy-to-use back office tool allowing users to know in real-time
exactly why, where, and what is happening.

Nemo CEM Brochure



QOSMOTEC - LTE Test Automation

Cost & Time Saving LTE Test Automation

Call Generator Network Testing

Qosmotec Mobile Network Tester LTS is a call generator for circuit switched and packet switched applications. It runs end-user applications on real UEs 24/7 and unattended. Furthermore, it integrates with other test equipment to complete the test process and to collect information about network quality and performance.

Handover Testing

Qosmotec's handover test system QPER provides a unique approach to modify RF conditions in the test lab. By simulating drive tests on the screen and applying signal strength and channel matrix to attenuator and phase shifter array, it is a powerful wideband handover and MIMO tester for the lab. In higher expansion stages, all radio propagation effects can be replicated in combination with a channel emulator, or a fully emulated mobile network can be setup in combination with a core network emulator.

All  products are setup modular and are not limited regarding their dimension. For later expansion, we offer test accessories which integrate smoothly into our test setup but can also be used standalone or in combination with other equipment. Qosmotec also offers product customizations and adaptations to specific requirements of individual testing environments as we understand the specific testing needs of network operators as well as network infrastructure vendors.



Qosmotec Products Brochure



SANJOLE - LTE, LTE-A and WiMax Test Tools

Essential Test and Measurement equipment for wireless 4G/5G Technologies



Solutions

Performance Testing & Benchmarking

As designs mature and the usage of spectrum and number of device acceptance increases, testing the performance of wireless devices and networks become more and more important. Design and deployment of wireless devices and networks continues to evolve with the ever changing channel conditions and feature support required by your clients.

Interoperability Testing

Interoperability is essential to every device which is targeted for commercial deployment. Implementations and innovation combine adherence to specifications while providing flexibility in design strategies.

Troubleshooting & Fieldtesting

Whether you are working in a design environment, integrating various components and layers, certifying devices for field use, or handling the deployment aspects of a wireless network, the ability to quickly troubleshoot complex scenarios provides the speed to deliver your end goals.



Products

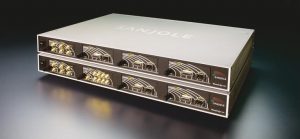

WaveJudge 5000 Wireless Test System

From silicon development to carrier deployment, the WaveJudge 5000 is an essential tool for development and deployment of both LTE and WiMAX solutions.

WaveJudge 5000 Modules

Learn about the modules that give you the ultimate in flexibility for customizing a test solution targeted to your testing needs.

WaveJudge 5000 LTE Analyzer

Enabling integrated L1-L3 testing beyond the reach of legacy test platforms.

WaveJudge 5000 WiMAX Analyzer

In depth analysis of WiMAX technology featuring a programmable design with support for testing 400 MHz to 6 GHz.

IntelliJudge LTE

IntelliJudge pairs with WaveJudge to take LTE testing to the next level by expanding the capabilities of the WaveJudge to support real-time decoding, filtering and triggering on all layers.



WaveJudge 5000 - LTE-A Carrier Aggregation Testing

NEXUS - Global Roaming Testing

SIMPLE, CLOUD-BASED AND COST EFFECTIVE ROAMING TESTS

NexusROAMER provides cloud based automated testing of global roaming subscriber service to ensure roaming service quality when your customers are visiting foreign networks. Roaming service quality assurance is a key element of Customer Experience Management. High quality, reliable service delivery is critical for pleasing your high revenue customers again and again.

▶ A Managed Test Service giving easy access for outbound testing

▶ Automated global roaming tests to increase customer satisfaction
▶ Improves customer experiences to protect roaming revenues
▶ Audit and manage roaming partner Service Level Agreements
▶ Investigate and detect SIM boxes
▶ Reduce costs while maintaining customer satisfaction







Managing your TOP roaming partners to support your customers has never been easier. There is no installation of hardware or software. Scheduled roaming service access testing alerts you of any critical threats to your service and revenues. Ad-hoc on-demand testing allows you to investigate issues related to services, country location or 2G/3G/4G access using real-time and historical results. Dashboards help analyze results, measure the success of new services, confirm regulatory obligations and detect fraudulent SIM Boxes.

NexusROAMER Datasheet



WITBE - QoE Monitoring Management & Centralization

Control of the End-to-End User Experience

Witbe gives you control of the end-to-end user experience of today’s applications – applications that are delivered via multiple technologies combining voice, video, data and TV, and accessed via a wide range of devices including computers, tablets, televisions, phones, mobiles and smartphones. At the heart of the Witbe system is a standard QoE baseline, which efficiently meets the needs of different units throughout your organisation – Operations, R&D and Engineering, IT systems management and Business planning and management.


Witbe allows you to:

  • Improve customer satisfaction
  • Track quality for user / business relations
  • Objectively verify your services
  • Anticipate slowdowns and incidents
  • Control the service levels actually delivered
  • Reduce your costs of operation.

Key Witbe applications include:

Internet and Cloud Monitoring | Applications Monitoring | VoIP/ToIP Monitoring | Call Centre & IVR Monitoring | Mobile Services Monitoring | TV, IPTV & VoD Monitoring | 3-Screens & OTT Monitoring | Triple Play Bundles Monitoring | OTT VoD Assets Monitoring | CDN Monitoring.

WITBE Robots are deployed at your test labs or in your production networks to measure the availability, performance, and quality of user applications. They come in various models depending on usage.

The measurements done by the Robots are sent in real time to the WITBE Central System, which provides functions such as alerting, database, Robot and user account administration, and interfaces with OSS and BSS solutions. Data publication is handled by the Portal, which is an HTTP based, secured interface accessible by any browser. Data results can be viewed and analyzed in real-time. Customized data publication is possible using WITBE's Dashboards.

Witbe Experience Centre Datasheet

Witbe OTT VoD Asset Monitoring Datasheet

Witbe Telephony Quality Manager Datasheet



Mobile Lab Solutions

RAMSEY - Excellence in RF Test Enclosures

Providing unprecedented visual and hands-on access to equipment in a tightly controlled RF-free test environment

Our patented portable benchtop RF Shielded Test Enclosure was a revolution in RF testing, providing unprecedented visual and hands-on access to equipment in a tightly controlled RF-free test environment. With tens of thousands of Ramsey Electronics® RF Shielded Test Enclosures now in service worldwide, our STE designs and technologies have become the industry standard for efficient and cost effective RF isolated device testing.




For further details on Ramsey's extensive range of RF enclosures please download the catalogue:

Ramsey RF Enclosures Catalogue

EMITE - MIMO Reverberation Chambers

Unique multicavity mode-stirred source-stirred MIMO Reverberation Chambers



EMITE designs, manufacturers and commercializes the fastest and most advanced mode-stirred source-stirred reverberation chambers (RC) in the market worldwide, providing fully-automated, fast, repeatable and accurate MIMO Passive, Active MIMO OTA and Traffic MIMO measurements for design, development, compliance and performance testing for all cellular and wireless technologies to date.E

MITE has found the perfect modular and upgradable Reverberation Chamber (RC) design for testing wireless and cellular devices Over-The-Air, from 2G SISO to 5G MIMO, always thinking about providing the best value-for-money for clients.

Click on the image above to download the datasheet

E Series

Reverberation Chambers have never been so smart. The E500 MIMO Analyzer multicavity mode-stirred source-stirred reverberation chamber can make single measurements, protocols or campaign tests for different frequency bands, different technologies and different channel models, in one batch test running overnight without human intervention. All test results at your desk when arriving at the office. Its unique Easy Attachment and Smart Attachment algorithms allow your dreams to come true; we measure while you rest. Finally.

The E500 MIMO Analyzer offers fully-automated fast and simple 2G to 5G SISO and MIMO OTA testing for all available wireless and cellular technologies to date.

The E500 MIMO Analyzer has been pre-selected by CTIA and 3GPP for TXD and MIMO OTA standardized testing and round robin campaigns.

Click on the image above to download the datasheet

F Series

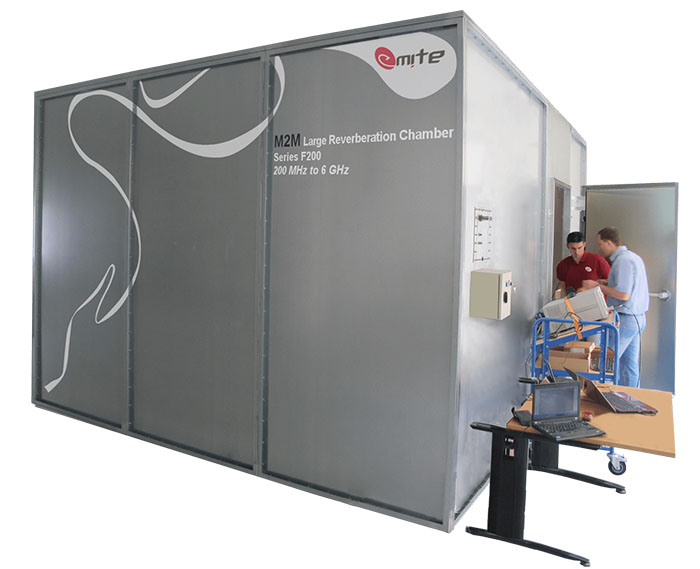

The F200 MIMO Analyzer is a mode, platform and source stirred large M2M reverberation chamber that provides unique measurement capabilities for large form-factor devices under test (DUTs) like laptops, large TV sets, solar and trash compactors, fridges or washing and vending machines, among others. With up to 4 available channels and test volumes1  up to 4.5 m3, the F200 MIMO Analyzer is able to efficiently measure TRP, TIS and TPUT of large M2M/IoT/Wearable devices with extreme accuracy, unheard-off repeatability and with the shortest test times in the market using a single and intuitive Graphic User Interface. DUT plugged-in (100-240 V AC) testing is also available. A combination to a channel emulator (CE) is also possible for advanced MIMO OTA testing of large devices.

Click on the image above to download the datasheet



PT Series

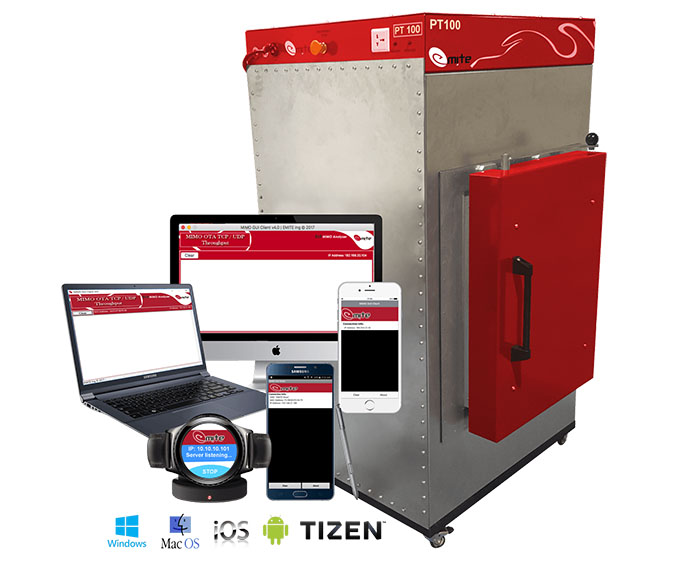

The PT100 Small Reverberation Chamber is a one-of-its-kind OTA test chamber. The patented PT100 chamber is a multi-cavity mode-stirred source-stirred reverberation chamber for WLAN 802.11abgnac (2.4 and 5 GHz bands), Bluetooth 802.15.1 1.0/2.0, wireless Internet of Things (W-IoT) and Production OTA Testing in non-signalling, providing unheard-of ultra-fast test times with very good accuracy and repeatability and the smallest footprint on the market, making it ideal for Production testing. Downlink and Uplink TCP/UDP TPUT can be tested for wireless stations (STAs) and Access Points (APs) in a variety of Operating Systems, with user-selectable technology, band, channel (including DFS ones), bandwidth, antennas, rates (MCS) and other parameters in an individual manner for each test on a batch, which can then be run overnight in an unsupervised manner.



l

Cellular Planning Solutions

RANPLAN 'iBuildNet' All In One Network Planning (HetNet)

For more information on RANPLAN's iBuildNet solution please contact Maser





CELPLAN - Celplanner Network Design, Optimisation and Maintenance Tool





Time & Network Solutions

TRIMBLE - Timing Solutions for Telecommunications Systems

Providing the pulse for the world's largest networking companies

Trimble time and frequency products use the capabilities and accuracy of a GPS satellite synchronized clock to deliver pulse-per-second and frequency reference signals for many industries. From wireless infrastructure and base station timing, to laboratory reference and event time stamping... we have timing modules, boards and standard products to satisfy your needs. Trimble's unsurpassed record of reliability over many years of service positions us as value leaders in the industry.

Trimble time and frequency products use the capabilities and accuracy of a GPS satellite synchronized clock to deliver pulse-per-second and frequency reference signals for many industries. From wireless infrastructure and base station timing, to laboratory reference and event time stamping... we have timing modules, boards and standard products to satisfy your needs. Trimble's unsurpassed record of reliability over many years of service positions us as value leaders in the industry.

Thunderbolt® NTP Time Server TS100

The Trimble Thunderbolt® NTP TS100 Time Server is designed for demanding applications that require high accuracy NTP time stamping. The Thunderbolt NTP TS100 supports multiple constellations GNSS, which enables tracking of GPS, GLONASS, and Beidou satellites enhancing redundancy and satellite availability. The Thunderbolt NTP TS100 Time Server is certified NEBS standards for reliability.

NTP v4 Time Server
Supports 2.5K NTP tps
Multi-Constellation
(GPS, GLONASS, Beidou and Galileo-ready)
15ns time accuracy (GPS locked)
Holdover of ±1.5us over 4hours
(constant temperature and when locked to GPS for 7 days)
IPv4 and IPv6 Support
NEBS Compliant

Trimble Thunderbolt TS100 NTP Time Server Datasheet

Thunderbolt® PTP Grandmaster Clock
The Trimble Thunderbolt® PTP Grandmaster Clock GM100 is the first Grandmaster of its kind designed for LTE Advanced and small cell deployments. The Thunderbolt Grandmaster Clock supports PTP (IEEE 1588).

EEE 1588 PTP Grandmaster Clock
Outputs: PTP, NTP, SyncE and PPS
Multi GNSS capability for improved reliability and redundancy.
Extended Temperature range (-40°C to +85°C)
Timing pulse synchronized to within 15 nanoseconds (one sigma) of GNSS/UTC

 Trimble PTP Grandmaster Clock

OPWill - Synchronisation Analysis

Designed for Conducting Clock Synchronisation of PTN or Packet Ethernet

OTM2800 Synchronisation Analyser is specially designed for conducting clock synchronisation of PTN or Packet Ethernet. It is developed in accordance with IEEE1588v2, SyncE, 1PPS+ToD, Ethernet, and E1 such standards, provides a complete clock, frequency, and time synchronisation test solution for operators. This module is compatible with OTP6200v2 (OPWILL Intelligent Network Test Platform).

Supports 1588v2 testing, 1PPS+ToD testing, SyncE testing,1PPS/PP2S testing up to 1000M

Supports 10M to1000M rate packet Ethernet test functions, such as OAM, MPLS-TP, RFC2544, Y.1564 and so on;

Supports E1/T1 Testing

OTM2800 Sychronisation Analayser Test Module Datasheet

OPWILL - 100G Test System

 100G Ethernet, OTN & CPF

OTM2620 100G Test Module is designed for satisfying the current increasing demand for testing the Core Network and MAN 100GE and OTU4 for high speed network performance and stability. This module is compatible with OTP6200v2 (OPWILL Intelligent Network Test Platform).

Highlights

CFP interface for 100GE and OTU4 Applications
CFP2 and CFP4 interface support with CFP-to-CFP2 and CFP-to-CFP4 adapters
External clock interface
200ppm clock offset generation
Eye diagram reference clock output
Soft LED indicators

Applications

OTN Core Network, MAN development, installation, and maintenance;
Carrier Ethernet infrastructure manufacture, installation, and maintenance;
Mobile Front haul and Backhaul Network installation, and test;
BERT, RFC2544, and SLA verification;
100G data stream generation and analysis.

Key Features

100GE Ethernet Testing:
Optical 100Gbps Ethernet testing
Optical Lane BERT and CAUI-4/XLAUI Lane BERT
PCS Layer Testing with Skew generation and monitoring
Multi-stream testing up to 512 independent streams
IEE802.3ah, ITU-T Y.1731 and ITU-T G.8113.1 OAM support
Q in Q, MPLS, MPLS-TP support
MAC and IP flooding
RFC2544 and Y.1564 SLA testing
Service Disruption Measurements
IPv4 and IPv6 traffic generations
BERT , Loopback and Throughput testing at Layer1 to Layer 4
Smart Loopback mode for Layer 2 and Layer 3
100G packet capture with OPWILL Capture Software decode
Error Injection and Alarm Generation

100G OTN Testing:
OTN testing for OTU4
Complete multi-stage Mapping/Multiplexing
Ethernet over OTN
Service Disruption Measurements
Overhead monitoring and byte decoding
Error Injection and Alarm Generation
Terminate and Through test modes
Per-lane optical power and frequency measurements
External clock reference interface
Eye diagram reference interface

CFP Testing:
Optical Lane BERT
PCS lager testing with skew generation and monitoring
Transmit and receive optical power measurement
Module status display

For further information please contact Maser

HFC Solutions

EFFIGIS - Cable Network Leakage and Ingress Monitoring Solution

Mobile and Modular Monitoring for Cable Distribution Networks

CPAT FLEX is a leakage and ingress monitoring solution based on an open-platform, modular and scalable design.  With it, operators can retain the quality of their networks, while enhancing efficiency of maintenance operations.

Each module is independent, so you can develop your own monitoring system based on your requirements. Effigis is already working on creating new modules that will meet the needs of tomorrow’s networks, since technology is constantly changing.

Portable Digital Leakage Detector/Signal Generator

The DRV3/DSG1 Lite package ensures total quality in-house installations by tracking potential cable shielding integrity issues.





Leakage Detection Solution
CPAT FLEX has different modules for leakage detection: the brand-new DRV3 for detecting leakages in all-digital networks, and then DRV2 and DRV1.

Ingress Detection Solution
The CPAT ingress detection solution is comprised of three components and a mobile application: ITX1, ITX2, IRX1 and CPAT’s mobile application (Real-time Ingress Monitor). The solution also includes an antenna for maximum mobility.

Mobile Control Module
ARD4 is the control centre of the CPAT FLEX system. It manages GPS positioning in real time, as well as the recording of event and wireless communications.

Web Application (v.4)
With its powerful Web application, CPAT FLEX enables broadband network operators to effectively manage their leakage and ingress control programs and monitor operations remotely and in real time.



Effigis CPAT FLEX Datasheet



ELECTROLINE - HFC Modems and WiFi Access Points

Innovative HFC Cable Solutions

Electroline Equipment Inc. is a leading international provider of broadband solutions including DOCSIS and Euro-DOCSIS based status monitoring transponders and temperature hardened cable modems, optical transmission products, addressable tap systems, return path ingress management technology, drop amplifiers, and passive CATV devices. Integrated DOCSIS 3.0 cable modem with a full spectrum analyzer.

WiFi Over DOCSIS Solutions

  • Integrated cable modem with full spectrum analyzer
  • Dual PAD (Upstream & Downstream) system
  • Cable Modem Watchdog and remote power recycling function (reduce truck rolls)
  • Adjustable Downstream slope (Cable Simulator)

Major Features of the AQ5000 Series:

  • Concurrent dual-band 2.4 & 5 GHz
  • HFC cable plant powered 35 to 120 VAC
  • Front end with US and DS diplexer power control with field upgradable PADs
  • 802.11ac 3x3:3 MIMO supporting up to 1300 Mbps data rate
  • Standalone or centrally managed by AQ5000 Series Controllers
  • Integrated standards-based security
  • Up to 16 ESSIDs per radio with 802.1Q VLAN
  • Captive portal and Guest provisioning*1
  • Rogue AP detection & Load balancing*1
  • Fast Layer 2/Layer 3 roaming*1
  • Proven technology with millions of DOCSIS® and EuroDOCSIS® integrated circuits deployed.
  • DOCSIS® 3.0 and Euro-DOCSIS 3.0 Compliant
  • Eight (8) bonded downstream channels with data rates in excess of 340 Mbps
  • Four (4) bonded upstream channels with data rates in excess of 120 Mbps
  • Embedded Web Server for all status indications and spectrum analyzer
  • Various Powering options
  • Surge Protection
  • Operating Temperature Range -40°C to +60°C (-40°F to 140°F)



Electroline Outoddor Wifi Access Point Datasheet





OWL530

♦ Most Versatile
♦ 802.11n
♦ Dual Band
♦ Up to 300 Mbps data rate
♦ Multiple Operation Modes

 Electroline OWL530 Outdoor WiFi Access Point Datasheet



OWL630

♦ Diverse Applications
♦ 802.11ac
♦ Dual Radio
♦ Up to 1.3 Gbps data rate
♦ Wireless Link BondingElectroline OWL630 WiFi Access Point Datasheet







Power & Battery Backup Solutions

POWERTEC - Battery & Backup Power Solutions

Innovative Customised Back-UP Power Solutions for Communications

Solutions for the PSI’s market entry and penetration focuses on key strategies to provide innovative, custom solutions increasing the functionality of current competitive solutions. PSI continues to keep a finger on the heartbeat of the Communications Market to ensure a better solution for today’s customer and future proofing solutions for tomorrow’s customer.



Our industry leading advancements in our competitive field include:

  • Highest rated surge protection FTTx power supply and UPS systems in the market (2x that of the closest competitor)

  • World’s smallest Communications UPS

  • World’s only All-in-One FTTx Enclosure to house ONT, UPS and Fiber Management all under a combined weight of 5lbs

  • World’s first to launch local ONT reset capabilities

  • World’s smallest FTTx power supply with built in battery charging protocol for outdoor ONTs

  • World’s only UPS with 10-15 year ship to replace lithium pack

  • Custom OEM switching power supplies to meet any power rating 5V-48V, AC or DC, and connector type.

Powertec Catalogue





Professional Services

MASER - Network Services

logo

Maser Network Services

Maser provides Mobile Network implementation and test services. We are specialise in Macro and In-Building Solution Design, Installation, Commissioning, Integration and Troubleshooting of Active (Fibre Optic) and Passive DAS (Distributed Antenna Solutions).

Our experience include Mobile Coverage Testing and Report Preparation, Fibre Installation, BTS Commissioning, and PIM testing/rectification services. We have been long term network assurance partners with Telstra, Optus, VHA, VicTrack on UHF, 2G, GSM-R, 3G and LTE technologies.

Maser and our range of world leading RF partners have extensive experience throughout Australia and overseas within the telecommunications industry. “Our promise is to deliver Industry standard solutions and services within an agreed timeframe and on budget to our customers”.

Our Services:
RF Coverage Testing
RF Planning ,Design and Implementation (Macro,& Rail Tunnel)
Project Management
Site Management
Resource Placement
Maintenance
Active DAS Commissioning and System integration services





MASER - One-Stop Procurement Service

logo

Maser Procurement Services

Maser can provide a cost and resource effective ‘one-stop-shop’ type service to customers looking for a single supplier to provide their RF network components. Maser provide this service using their own stable of world leading suppliers and will source from other vendors as needed to simplify the procurement process.



MASER - Supply and Commercial Agreements

logo
Maser Commercial

Maser has extensive capabilities and experience in negotiating supply agreements. Maser is an active supplier to, and importantly have supply agreements in place with, the many telecommunications service providers in Australia including Telstra, SingTel Optus, Vodafone, Vocus/M2 and TPG.  We also have agreements in place with many of the major network build contractors involved with rolling out and maintaining RF sites across Australia.



MASER - Logistics

logo

Maser Logistics

Maser has extensive logistics capabilities and experience that is required to fulfill major network roll-out requirements in a timely manner. We use a pool of freight forwarders to keep freight costs down, have our own warehouses for storing network equipment and spares, and are experienced at delivering large items (e.g. base station antennas) around Australia.



Partners

Maser partners with the following market leading vendors to provide outstanding service assurance solutions to our customers:

Anite Nemo / Keysight

Anite Nemo (now part of Keysight Technologies) provides the market leading range of wireless test solutions (including drive testing) to ensure a quality end user experience.

ASTELLIA

Astellia is a leading provider of network and subscriber intelligence enabling mobile operators to drive service quality, maximize operational efficiency, reduce churn and develop revenues.

Its vendor-independent real-time monitoring and troubleshooting solution optimizes networks end-to-end, from radio to core. Astellia’s unique blend of products and services provides automated optimization, actionable geolocation insights and big-data analytics to Network Operations, Service Operation Center, Customer Care and Marketing teams.

Celplan

CelPlan creates new opportunities for mobile operators, vendors and partners to boost performance, reduce costs, and retain customers by providing innovative, RF planning & optimization software solutions and high, value-added consultancy & engineering services.

Consultix

Consultix’s range of drive test receivers and transmitters are engineered to deliver a field-proof, user-friendly, small size, modular, and easy-to-maintain products covering every user’s field requirements and preferred setup.

ELECTROLINE

Having emerged as a true leading manufacturer of integrated CATV service solutions, Electroline currently offers six families of products which include the e-Optic line of products, broadband addressable tap systems, return path noise management tools , drop amplifiers, DOCSIS based network status monitoring transponders and MPEG probes, and passive CATV devices.

EMITE

Thanks to years of investment, patenting and investigation, EMITE has found the perfect modular and upgradable Reverberation Chamber (RC) design for testing wireless and cellular devices Over-The-Air, from 2G SISO to 5G MIMO, always thinking about providing the best value-for-money for our clients.

RANPLAN

Ranplan understand radio planning inside and out, and have developed iBuildNet to provide an integrated RF planning solution, which allows indoor and outdoor networks to be designed and deployed in coordination and at the lowest cost.

Nexus / Systemics

Systemics (purchased Nexus Telecom) near real-time analytical software allows telecommunication service degradations and network malfunctions to be quickly detected and appropriately resolved. Nexus’ roaming test solution allows mobile networks to regular test between their network and foreign partner networks to detect issues that impact customers.

OPWILL

Opwill offers test and monitoring systems and services for telecommunications service providers, cable operators, and network equipment manufacturers. Our robust portfolio of feature-rich, easy-to-use products (including synchronisation testers) enable service providers to deliver premium voice, video, data and next-generation digital multimedia services quickly, reliably, and cost-effectively.

POWERTEC

PowerTec offer  a full range of battery power solutions including standby, backup, FTTx and Lithium.

QOSMOTEC

Qosmotec supply mobile network operators and service providers with test automation systems for all current wireless technologies, including modern standards like HSPA+ and LTE. Qosmotec provide solutions for call-generation, load-tests, international-roaming, and handover tests offer an efficient, cost and time saving testing process.

RAMSEY

Ramsey’s patented portable benchtop RF Shielded Test Enclosure are a revolution in RF testing, providing unprecedented visual and hands-on access to equipment in a tightly controlled RF-free test environment.

SANJOLE

Sanjole is a leader in LTE and WiMAX testing with expertise in innovative wireless technology. Sanjole provides problem solving capabilities from inside the wireless network through over the air analysis tools that provide visibility into events spanning multiple layers.

Sanjole has been involved from the very beginning of WiMAX as a test vendor in the first plugfests for both fixed and wireless devices. Our work with the WiMAX Forum and 3GPP combined with extensive experience in interoperability trials gives Sanjole deep insight into the complex technical issues specific to the LTE and WiMAX community.

TRIMBLE

Trimble time and frequency products use the capabilities and accuracy of a GPS satellite synchronized clock to deliver pulse-per-second and frequency reference signals for many industries. From wireless infrastructure and base station timing, to laboratory reference and event time stamping… we have timing modules, boards and standard products to satisfy your needs.

WITBE

Witbe offers an award winning approach to ensure the Quality of Experience actually being delivered to the End-Users of any interactive service (telephony, video, Web), on any device (PC, smartphone, STB), and over any type of network (fixed, mobile, OTT). Leading innovations in the QoE industry, Witbe boasts over 300 clients worldwide.

News

Contact Us

Please call Maser on 02 9452 6062, email telco@maser.com.au or enter your details on the right and let us know what Solutions, Applications or Partners you're interested in and we will send through more information ASAP.

Thank you for your interest in Maser.
