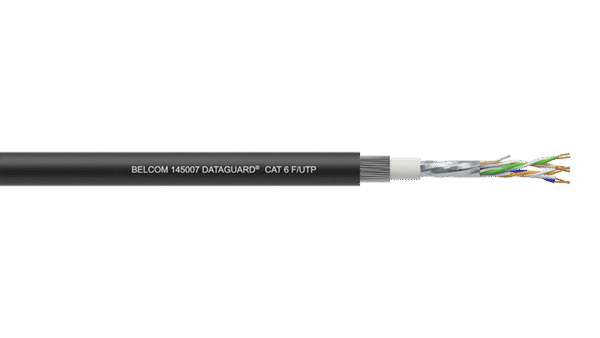

4PR 23AWG Overall Foil (F/UTP) PE/SWA/LSZH Industrial Cat 6

4PR 23AWG Overall Foil (F/UTP) PE/SWA/LSZH Industrial Cat 6

4PR 23AWG Overall Foil (F/UTP) PE/SWA/LSZH Industrial Cat 6 quantity

Categories: CAT 6, Copper, Ethernet & Industrial Ethernet, Communication & Data

Supplier Part Number: BEL145007

No. of Pairs/Cores: 4 Pair

Conductor Size: 23AWG

Insulation Material: PE

Shielding: F/UTP

Sheath: LSZH

Download Spec Sheet

Description

Description

4PR 23AWG Overall Foil (F/UTP) PE/SWA/LSZH Industrial Cat 6
