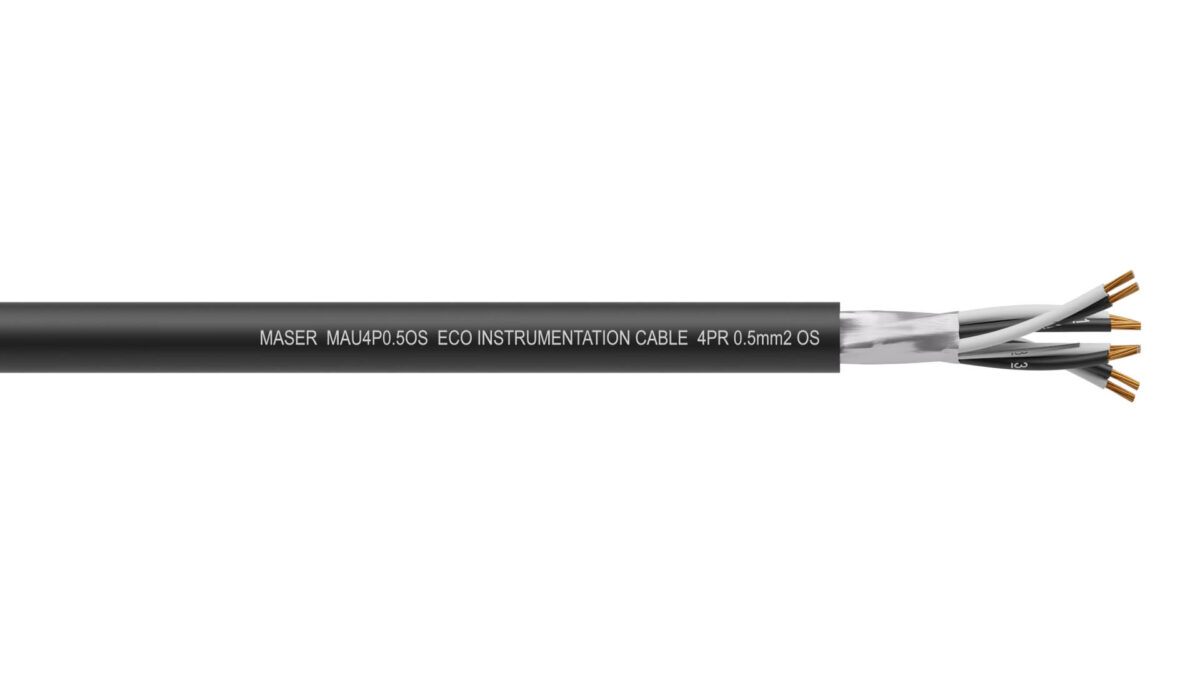

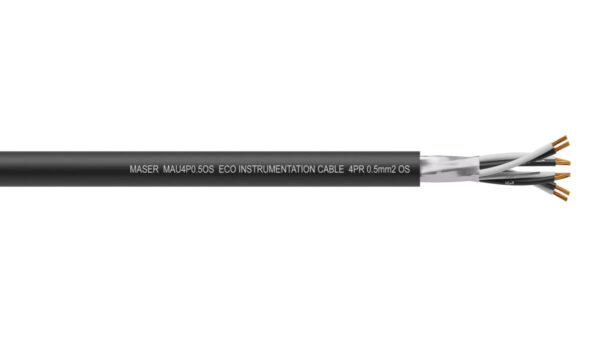

4PR 0.5mm2 Overall Screen PVC/PVC Eco Instrumentation Cable

4PR 0.5mm2 Overall Screen PVC/PVC Eco Instrumentation Cable

4PR 0.5mm2 Overall Screen PVC/PVC Eco Instrumentation Cable quantity

Categories: Copper, ECO Series, Pairs, 0.5mm2 Overall Shield, Instrumentation

Supplier Part Number: MAU4P0.5OS

No. of Pairs/Cores: 04 Pair

Conductor Size: 0.5mm2

Insulation Material: PVC

Shielding: Overall Foil Shield

Jacket Colour: Black

Sheath: PVC

Download Spec Sheet

Description

Description

4PR 0.5mm2 Overall Screen PVC/PVC Eco Instrumentation Cable
