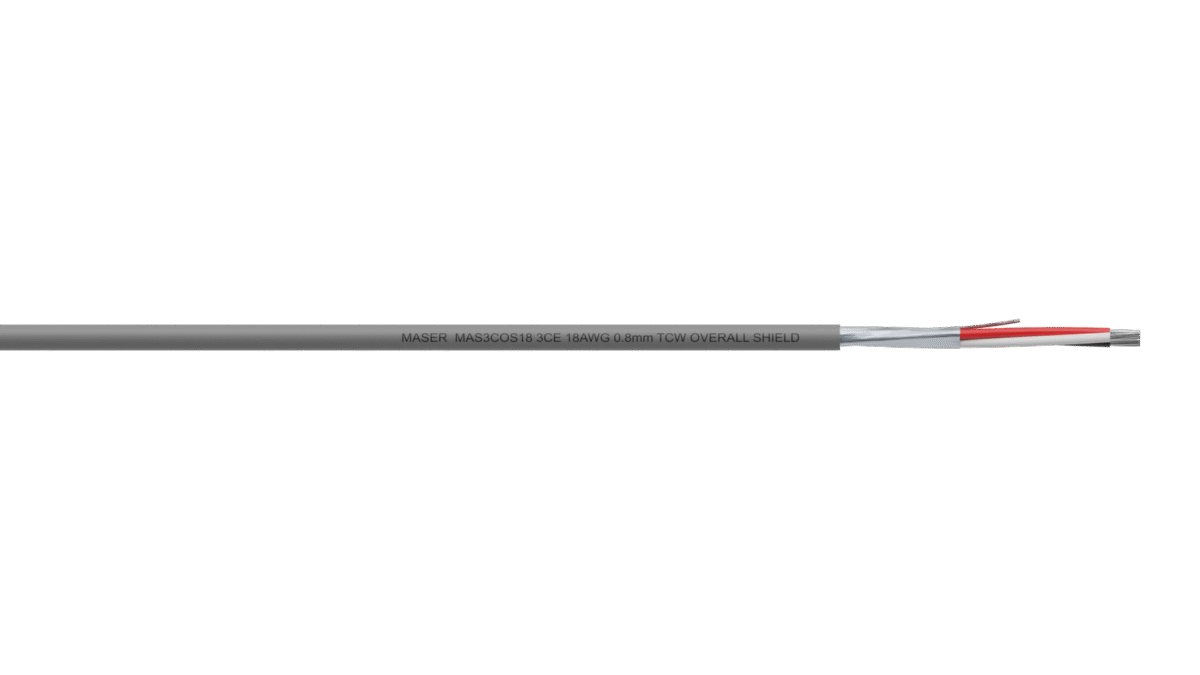

3CE 18AWG Overall Foil Shield Audio & Control Cable – Grey PVC

3CE 18AWG Overall Foil Shield Audio & Control Cable - Grey PVC quantity

SKU: 020010005 Categories: AUDIO & CONTROL, Communication & Data

Supplier Part Number: MAS3COS18

No. of Pairs/Cores: 3 Core

Conductor Size: 18 AWG

Insulation Material: PP

Shielding: Overall Shield

Sheath: PVC

OD: 4.3

Download Spec Sheet

Description

Description

3CE 18AWG Overall Foil Shield Audio & Control Cable – Grey PVC
