Home / Copper / Communication & Data / 2PR 22AWG Overall Screen + Braid PE/PVC Industrial RS-485/DMX-512 Cable

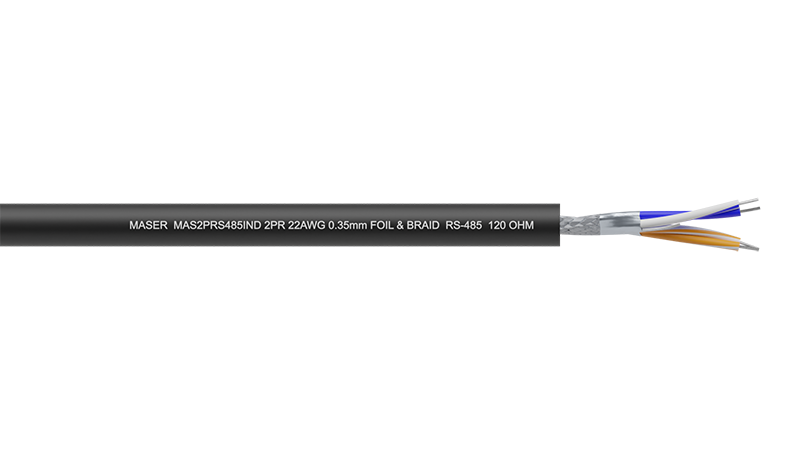

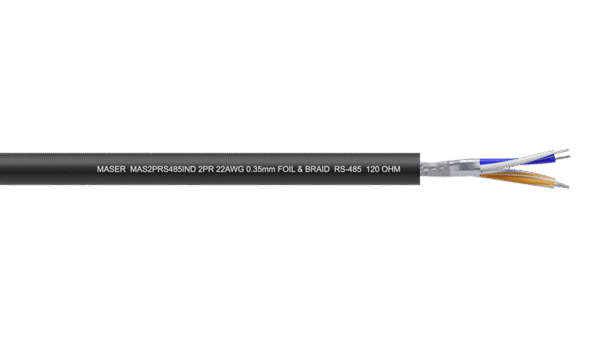

2PR 22AWG Overall Screen + Braid PE/PVC Industrial RS-485/DMX-512 Cable

2PR 22AWG Overall Screen + Braid PE/PVC Industrial RS-485/DMX-512 Cable

2PR 22AWG Overall Screen + Braid PE/PVC Industrial RS-485/DMX-512 Cable quantity

SKU: 020050002-1 Categories: Industrial RS-485, Communication & Data

Supplier Part Number: MAS2PRS485IND

No. of Pairs/Cores: 2 Pair

Conductor Size: 22 AWG

Insulation Material: PE

Shielding: Overall Foil + Braid

Sheath: PVC

OD: 9.2

Download Spec Sheet

Description

Description

2PR 22AWG Overall Screen + Braid PE/PVC Industrial RS-485/DMX-512 Cable
