Home / Communication & Data / 2PR 22AWG Individual Foil Shield Audio & Control Cable – Grey PVC

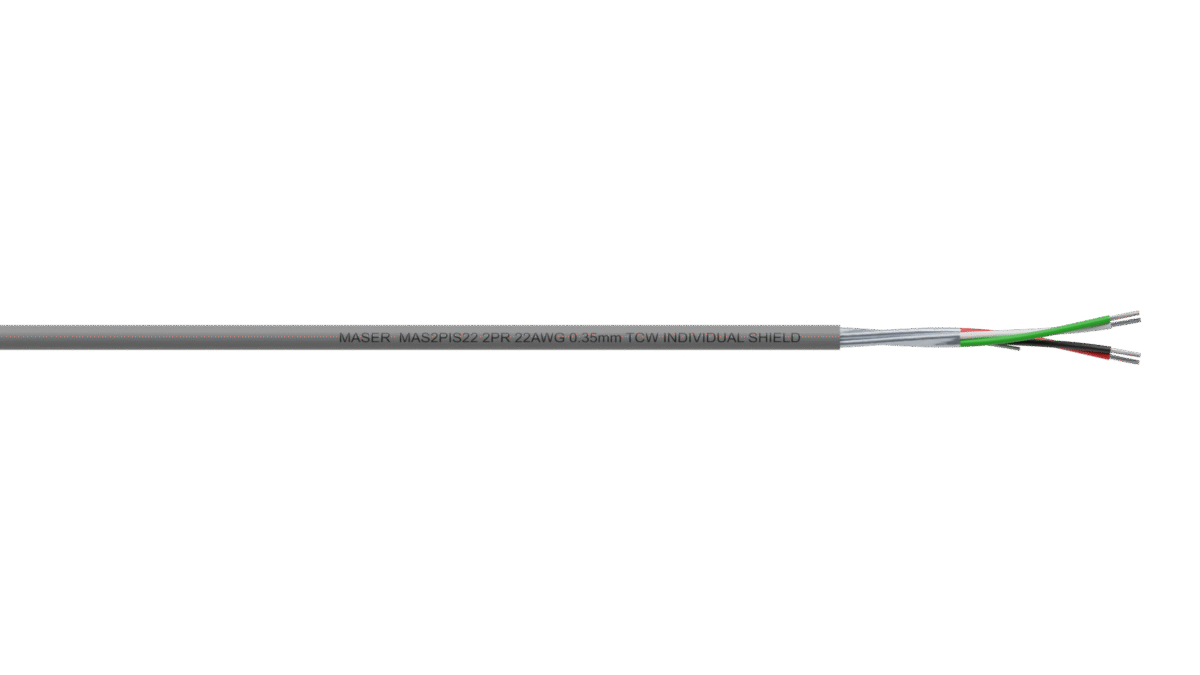

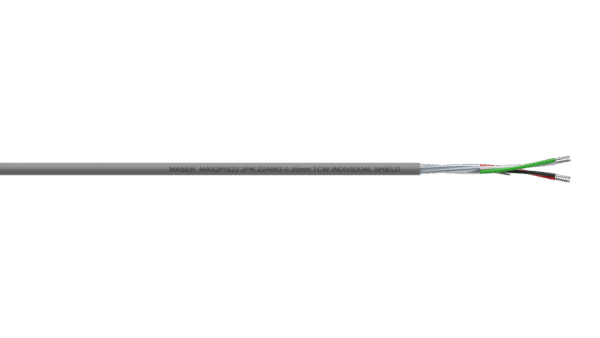

2PR 22AWG Individual Foil Shield Audio & Control Cable – Grey PVC

2PR 22AWG Individual Foil Shield Audio & Control Cable - Grey PVC quantity

SKU: 020010003 Categories: AUDIO & CONTROL, Communication & Data

Supplier Part Number: MAS2PIS22

No. of Pairs/Cores: 2 Pair

Conductor Size: 22 AWG

Insulation Material: PP

Shielding: Individual Foil Shield

Sheath: PVC

OD: 4.1

Download Spec Sheet

Description

Description

2PR 22AWG Individual Foil Shield Audio & Control Cable – Grey PVC
