Home / Communication & Data / 1PR 24AWG Overall Foil + Braid RS-485 Cable – Grey PVC

1PR 24AWG Overall Foil + Braid RS-485 Cable - Grey PVC

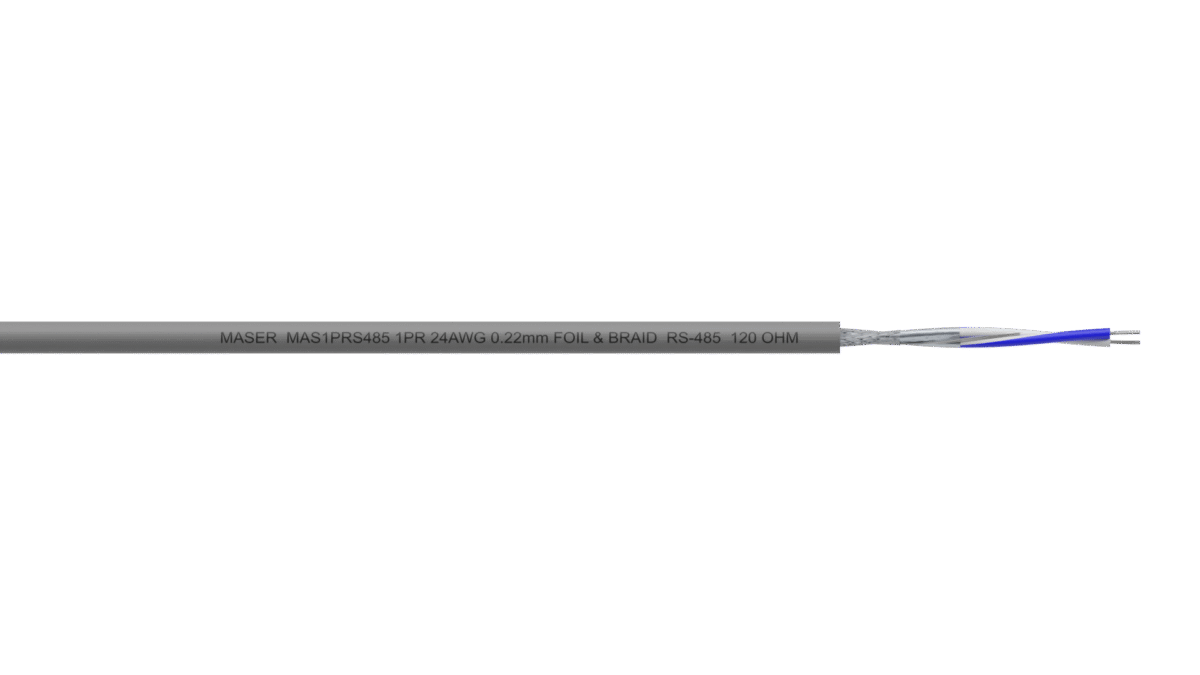

1PR 24AWG Overall Foil + Braid RS-485 Cable – Grey PVC

1PR 24AWG Overall Foil + Braid RS-485 Cable - Grey PVC quantity

SKU: 020040001 Categories: RS-485, Communication & Data

Supplier Part Number: MAS1PRS485

No. of Pairs/Cores: 1 Pair

Conductor Size: 24 AWG

Insulation Material: PE

Shielding: Overall Foil + Braid

Sheath: PVC

OD: 5.9

Download Spec Sheet

Description

Description

1PR 24AWG Overall Foil + Braid RS-485 Cable – Grey PVC
