Home / Communication & Data / 1PR 0.8mm Overall Foil Shield KNX Cable – Green LSZH

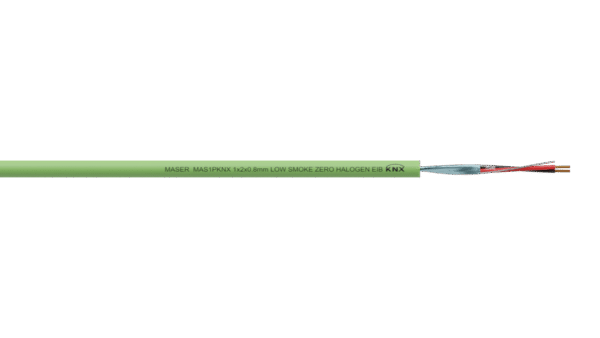

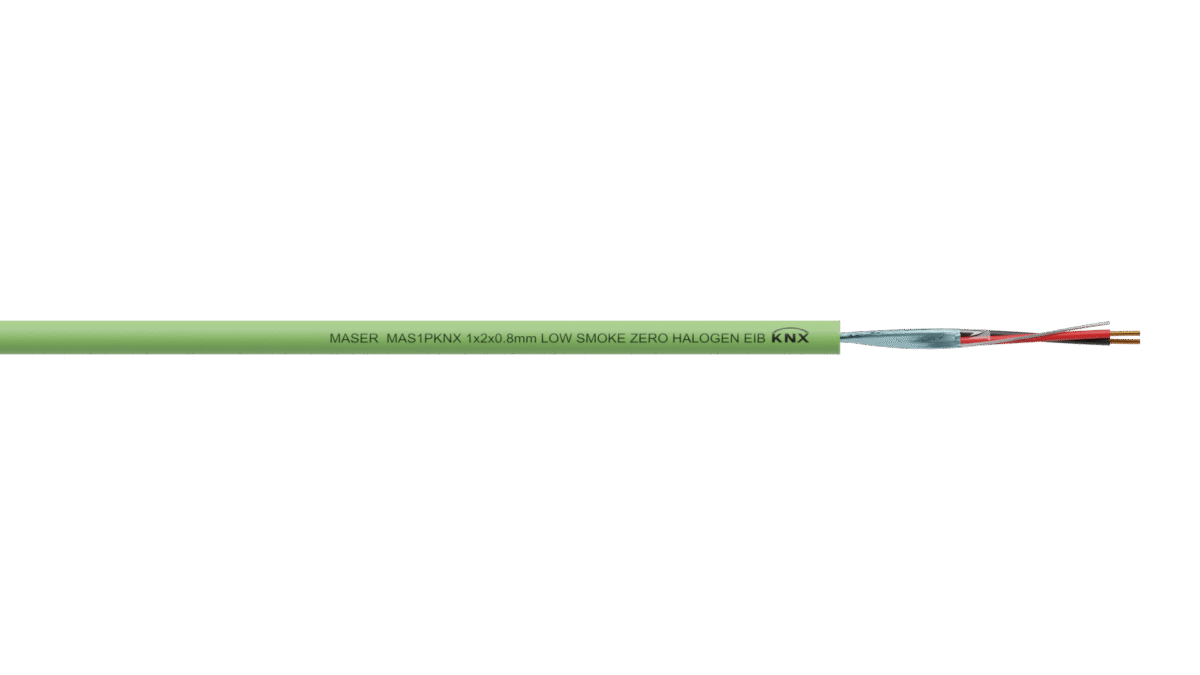

1PR 0.8mm Overall Foil Shield KNX Cable - Green LSZH

1PR 0.8mm Overall Foil Shield KNX Cable – Green LSZH

1PR 0.8mm Overall Foil Shield KNX Cable - Green LSZH quantity

SKU: 020020001 Categories: KNX, Communication & Data

Supplier Part Number: MAS1PKNX

No. of Pairs/Cores: 1 Pair

Conductor Size: 0.8mm

Insulation Material: PE

Shielding: Overall Foil Shield

Sheath: LSZH

OD: 5.6

Download Spec Sheet

Description

Description

1PR 0.8mm Overall Foil Shield KNX Cable – Green LSZH
