RF Solutions from Maser
Our insatiable demand for mobile data and services has resulted in exciting new RF technologies such as MIMO (Multiple Input – Multiple Output) being deployed to more efficiently use the limited RF mobile spectrum (spectral efficiency). MIMO involves multiple antennas and the simultaneous reuse of radio channels on different antennas to multiply the data capacity of mobile networks.
The potential of MIMO technology is unquestioned however it has raised important issues that RF planners and engineers need to address to deploy high performance cellular networks that gain the maximum benefit from MIMO.
These issues and the increasing demand for data has resulted in a drive towards smaller cells, lower PIM (Passive InterModulation) passive RF elements, specialised antennas and RF infrastructure, and more comprehensive RF and mobile data analysis and network optimisation tools.
Maser's range of IT&T solutions ensure that your network and IT infrastructure provides a better quality of experience to users and increased profitability.
Solutions & Applications
Small Cell Antenna Solutions
KATHREIN - Low visual impact designs including Street Connect (Manhole)
Revolutionising Data Traffic in Cities
Kathrein offers different antenna solutions in order to support their customers in their effort to deploy small cell outdoor solutions for 3G and LTE. Not only do these antennas meet reliable electrical parameters, the unobtrusive design also minimises the visual impact especially in sensitive urban areas. Small cells are well-suited for providing dedicated capacity to high-use urban hotspots, such as hotel lobbies, restaurants, malls, train stations, airports and city streets.
1, 2, or 4-Port Antennas
- Ultra-broadband design with different frequency combinations (single, dual- band)
- Different pattern version, e.g. cross-polarised omni, bi-directional, tri-sector
- MIMO capability
- 2 to 9.5 dBi gain
- Very small dimensions
- Smart innovations, e.g. antenna with 2 independently adjustable radiator elements
4, 8, or 12-Port Antennas
- Ultra-broadband design: 698-960/1695-2690 MHz
- Available with omni, two, or tri-sector pattern
- With integrated GPS antenna
- MIMO capability
- 6 to 13 dBi gain
Low visual impact
- Kathrein Street Connect Antennas
- Invisible capacity enhancement solution
- Appearance of manhole cover merges with existing infrastructure
- Ultra-broadband design: 1695-2690 MHz
- Proven MIMO performance
ALPHA WIRELESS - High performance ultra compact antennas
Ultra Compact Small Cell Antennas with uncompromised RF performance
A family of ultra-compact antennas which increases the number of mounting options for small cell sites: walls; poles; inside; outside; virtually anywhere! Now approved by many leading operators across the world the Alpha Wireless ultra-compact range leads the market in this regard with: uncompromised RF performance in the smallest form factor; usable indoors or outdoors; mountable on a pico radio to reduce box count on a mast; optional integrated GPS.
- Uncompromised RF performance in the smallest form factor
- Available sizes~: Sector: 400mm x 160mm x 35mm, OMNI Size: 500mm x 115mm
- 698-960 & 1710-2690MHz UWB antenna options
- MIMO 2×2 Ports
- Usable indoors or outdoors
- Available in 65°, 90°, 200° and 360°
- Can be mounted directly on to a small cell radio
- Optional integrated GPS
- Flexibility in our design
To view the range see the table below or download the brochure.
|Alpha Model No||Frequency Range||Ports||Tilt||Gain||Horizontal Beam Width|
|AW3387||1710-2690MHz||2||T0° or T8°||12.5dBi||65°|
|AW3388||1710-2690MHz||2||T0° or T8°||6.7dBi||360°|
|AW3397||1710-2690MHz||4||T0° or T8°||12.5dBi||65°|
|AW3398||1710-2690MHz||4||T0° or T8°||6.6//6.3dBi||360°|
|AW3474||1710-2690MHz||2||T0° or T8°||8.0dBi||200°|
|AW3477-s||2496-2690MHz||2||T6° - T20°||8.5dBi||360°|
Indoor/Outdoor DAS Solutions
KATHREIN - Passive and active DAS solutions

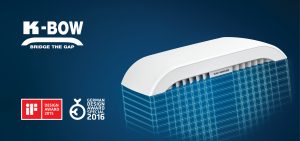

‘K-BOW’ Micro C-RAN Capacity Active DAS Solution
With K-BOW Kathrein enters a new dimension in in-house mobile broadband. By combining the synergies and experience available from the areas of highly efficient antennas, RF signal processing and power amplification technology, Kathrein is providing a future-proof solution for the challenges of today and tomorrow.
K-BOW is a Micro C-RAN System, which makes use of a centralised base station pool. It transforms an indoor mobile communication environment into a flexible multi-operator, multi-band and multi-standard network.
K-BOW provides flexible signal distribution and routing over all supported frequency bands and technologies, thereby enabling an optimal capacity distribution within the very dense traffic areas of the network.
K-BOW deployments are future-proof. The Kathrein system is technology independent and includes MIMO capability from day one. LTE-A features are transparently supported. The system is expandable in live operation and additional cabling is required.
K-BOW is designed with a minimum requirement on installation efforts. Install, connect, commission: no lengthy configuration and calibration – one time visit.
Click on the following link to find out more about K-BOW
DALI WIRELESS - All digital DAS for greater throughput and reach
All Digital DAS
Dali’s all-digital RF ROUTER® platform transcends the capabilities typically associated with traditional RF over fiber Distributed Antenna Systems (DAS) to provide in-building and outdoor coverage and capacity. This revolutionary platform delivers more data throughput and is valued at the lowest Total Cost of Ownership (TCO).
With Dali’s patented digital signal processing technology, the RF noise floor is unaffected by fiber length. This allows for greater coverage reach without signal degradation. With Dali’s all-digital and software-configurable solution, the entire network can be commissioned, upgraded and maintained through a Graphical User Interface (GUI). This provides ease of installation with a reduced deployment time.
Click on the following link for further information On Dali Wireless’s innovative RF Router
ROSENBERGER - Passive and active DAS solutions
Passive and Active DAS Solutions
With the increasing voice traffic, data and images via wireless mobile devices, also generates demand for signal coverage solutions indoors especially in large commercial projects such as shopping malls, condominiums, hotels, restaurants, airports and more.
The Rosenberger Domex has solutions that span the entire project design, with turn-key delivery capacity (site survey, design, installation, testing: VSWR, Walk Test and PIM, and at the end of the preparation of the final draft – as-built ) and also supplying equipment to the activation of the indoor coverage network of the passive components as complete for the antenna distribution system, calledDAS – Distributed antenna System.
Rosenberger DAS solutions cover GSM, WCDMA, LTE and Wi-Fi applications ranging from 698 MHz to 2700MHz. They comprise of fiber optic master and remote unit repeaters (for active DAS), point-of-interface (POI) signal combining racks, IBS antennas, passive components (splitters, couplers, hybrids, attenuators), fiber optic cable assemblies, and RF coaxial cables and jumpers.
RADiAnt, which stands for Rosenberger Active DAS with integrated Antenna, is our next generation distributed antenna system (DAS) platform designed to address the requirements of LTE-Advanced. It features a distributed architecture of compact remote radio units that supports multiple mobile operators for neutral hosting applications, multiple frequency bands and technologies – 4G LTE, 3G WCDMA, and 2G GSM/GPRS. The Integrated Remote Unit (IRU) features a slim integrated antenna along with a hybrid DC-Fiber feed for ease of installation and eliminates the need for traditional passive DAS components and unsightly or unwieldy coaxial feeder cables. With “Connect and Go” simplicity, the RADiAnt solution can be designed and installed in a fraction of the time compared with conventional Active/Hybrid DAS solutions. RADiAnt is also supported by Rosenberger’s Operations Maintenance Center (OMC) which provides remote NMS/EMS monitoring, control and configuration capabilities.
In many scenarios, a combination of traditional passive DAS and the high performance RADiAnt solutions are needed, such as using cost effective passive DAS for basement carpark coverage and the RADiAnt for robust high data rate mobile coverage in high rise offices and capacity hotspots. The SMART DAS solution can address these multiple needs on a single DAS platform. In addition to simultaneously supporting both DAS platforms, the SMART DAS can also provide dynamic capacity routing for temporary capacity surge in any area within the DAS network. The modular structure also provides capacity scalability and future proof on a “pay as you need” add on. Off-air repeaters can also be used as a cost effective solution to implement a small DAS system for basement car park coverage , or a small Pico repeater for a small office or shop, or in places where the traffic does not justify the use of a base station as the signal source.
Rosenberger DAS systems have been proven to provide robust mobile connectivity and have been successfully deployed in airports, metros, stadiums, shopping centres, and campuses throughout the world.
Please contact Maser for more information on Rosenberger’s range of DAS solutions.
Macro Antenna Solutions
KATHREIN - Widest range of macro antennas from the largest manufacturer
Passion to Connect – Multi-Band & Ultra-Broadband Antennas
Kathrein is a leading international specialist for reliable, high- quality communication technologies. Kathrein is an innovation and technology leader in today’s connected world. Kathrein’s ability to provide solutions and systems enables people all over the world to communicate, access information and use media, whether at home, at the office or on the road. Kathrein cover a broad spectrum: from outdoor and indoor mobile communication solutions, to satellite reception, broadband and broadcast technology, to transmission and reception systems in vehicles.
Kathrein’s macro antenna features and benefits are:
Significant CAPEX reduction through just one antenna in type approvals, logistics, installation and service upgrades
Considerable reduction in OPEX thanks to reduced site/mast rental fees and best-in-class reliability
Sophisticated antenna design for all networks – today and in the future
Just one antenna for multiple wireless technologies
Individual electrical downtilt adjustment per band
Different half-power beamwidths available
Various antennas for MIMO applications
For more information on Kathrein’s range of macro antennas and accessories please click below:
ALPHA WIRELESS - Smallest diameter tri-sector (pipe) antennas
AltaFlex technology conceals multiple sector antennas inside the lowest diameter (168-330mm) cylindrical housing in the market. The use of a single compact radome to house a full suite of antennas makes it the ideal solution when planning and zoning restrictions limit standard antenna deployments. It is designed to be easily mounted on rooftops, and on street furniture such as flagpoles and lighting fixtures, and is available in a variety of antenna configurations to suits most applications.
Click to download the Altaflex Antenna Brochure
ROSENBERGER - Base station antenna and feeder systems
Rosenberger’s S-Wave BTS Antenna Series cover all main-stream 2G/3G/4G mobile communication systems within 698-2700MHz. Assisted by the advanced electromagnetic and mechanical simulation software, Rosenberger’s multi-national R&D teams have successfully created a rich set of high quality BTS antennas based on the highest technical standards and the strictest environmental standards in the industry. Rosenberger will meet your current and future needs by providing excellent performance and value.
Click on the links below to download the Rosenberger datasheets:
|Single Low Band Antennas||Single High Band Antennas|
|Dual Band Antennas||Triple Band Antennas|
|Multi-Band Antennas||RET Accessories|
AMPHENOL - A comprehensive range of antenna based solutions
Base Station Panel Antennas
Amphenol Antenna Solutions (including Jaybeam) offer one of the most comprehensive ranges of mobile antennas on the market .In addition to antennas, Amphenol also offers an assortment of Filters, Mast Head Amplifiers and Tri-Sector antenna enclosures.
Amphenol Antenna Solutions product suite includes:
BTS antennas – fixed, adjustable, 2-way, tri-sector, log periodics, omnis and more.
Cylindrical Antennas – One, two and three-sector antennas inside a small, low visual impact cylindrical enclosure. Discretely deployed as flag poles, roof-top vents, street lamps or telephone poles.
For more information and datasheets covering Amphenol’s extensive product range click here
Non-FIM RF Components
Some Australia mobile network operators are moving towards a Non-FIM (Non Free Issue Material) model where network build service contractors are now being tasked with sourcing the RF components (e.g. Antennas, Jumpers, Cables, Connectors, DC Stops etc) required for mobile site installations and upgrades. Previously these items were all stocked and supplied by the network operators.
Maser is leveraging our resources and their year’s of experience at supplying Australian mobile operators to provide the widest range of Non-FIM components to network build service vendors and their sub-contractors.
An increasing number of our RF solutions are now part of our Non-FIM range. Click here to check out our Non-FIM range.
Cable & Connector Solutions
JMA - Low PIM Compression Connectors
Many of the largest mobile network operators are turning to JMA’s unique universal compression connectors, which utilize a patented active compression technology that eliminates PIM, installs in 1 minute and guarantees long term reliability. With these robust solutions, MNOs are able to significantly lower operational costs yet still meet the growing coverage and capacity needs.
“It takes only hours to train a new recruit to install JMA Wireless universal compression connectors and the results are outstanding. With traditional connectors it takes several weeks to achieve the same level of training and due to the nature of the connection you just can’t guarantee an acceptable result.” – – Onsite Industry Contractor
Click on the following link for a Technical Overview of JMA Compression Connectors or contact Maser regarding your specific requirements.

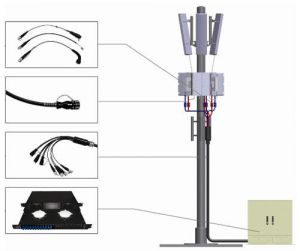

ROSENBERGER - Jumper & Hybrid Fibre Cables & Connectors
Jumper & Hybrid Fibre Cables
Rosenberger offers fully developed mobile communication infrastructure coax and fiber optic site solution products for the complete connectivity of radio base stations – from the BBU/PSU to the RRH and antenna.
RF Jumper Cables – Superior performance up to 6GHz
Rosenberger coaxial jumpers are designed using the many years of experience gained by Rosenberger engineers in this field and also utilize Rosenberger’s unique knowledge of designing and manufacturing world-leading rack and desktop PIM testing equipment.
Not only do Rosenberger SiteLink jumpers have the industry-best PIM levels -117 dBm / 160 dBc @ 2 x 20 W (typ. -120 dBm / -163 dBc @ 2 x 20 W) but these excellent levels are guaranteed for every assembly that leaves the Rosenberger production facility.
Factory made – every assembly is 100 % PIM and RL tested and serialized
Best in class PIM and RL-values
Superior performance up to 6 GHz
Measurement-protocol available for each jumper
High quality – PIM and VSWR 100% tested
Different connector types available
Less dropped calls
Supporting any technology
Power Jumper Cables
The unique coaxial design ensures more efficient cable capacity resulting in increased stabilization of the supply voltage. In addition to the superior electrical performance, the Rosenberger coaxial design offers a smaller diameter over jacket, a tighter bending radius, a more flexible installation as well as higher protection against induced currents and surges.
Available in 6 mm² or 10 mm²
High cable capacity
Stabilization of RRH supply voltage
Improved transient response
Smaller diameter and higher flexibility compared to two-wire design
Tight bending radius
360° EMI shielded – higher surge protection
Fiber Optic Jumper Cables
The fiber optic jumper cables build the flexible interconnection between Box and Boxless Solutions and the RRHs. Those outdoor jumper cables are designed for harsh environments and support the various interfaces of mobile solution providers.
Single-channel cable for harsh outdoor environment
Operating temperature range -40 °C to +85 °C
High UV resistance
High crush resistance
Both sides factory assembled with FO connectors
Single data channel in one cable
Factory tested Insertion Loss (IL) including test report
Please contact Maser to discuss your specific jumper and/or hybrid fibre cable requirements.
Antenna Accessories - e.g DC Stops, RCUs, Dust Caps, Smart Bias T's
Maser has a comprehensive range of antenna accessories from many of our vendors.
If you need DC Stops, Dust Caps, Smart Bias Ts, RCUs, TMAs etc please contact Maser.
RF Network Test Tools
MULTIWAVE - Smart Aligner is like no other antenna alignment tool
The Smart Aligner is the smallest and most powerful Antenna Alignment Tool on the market. Compact design, exceptional performance, multiple configurations and smart phone enabled makes it the smartest choice for aligning your antennas.
The incorporated GPS technology and sophisticated sensors calculate Azimuth, Tilt, Roll, Location and AGL of an antenna under the most demanding conditions.
Measure, verify and save alignment data using our free App (iOS and Android)
Create and send PDF reports wirelessly from your mobile device
Include up to four photos for each antenna in the report
Import and export site data directly to and from App
Microwave Azimuth Path calculator
On-board storage for alignment results
To learn more click to download the SmartAligner Datasheet.
ROSENBERGER - PIM Analyzers
Passive Intermodulation Analyzers
Passive Intermodulation Analyzers (PIA’s) from Rosenberger facilitate quick and accurate measurement of the intermodulation characteristics of passive components, such as connectors, cable assemblies, antennas and filters. Precise analysis of the quality of mobile communication infrastructure is also possible.
Rosenberger Passive Intermodulation Analyzers can be customized according to specific requirements by realizing modularized assemblies and cost reductions. Furthermore, Rosenberger provides technical support, product training, calibration as well as maintenance on site.
Rosenberger’s updated range of Passive Intermodulation Analyzers (PIA) includes Rack and Desktop versions, as well as PIM Site Analyzer alpha. Terminations, adaptors and test cables complete the product portfolio. All analyzers are offered for measurements in various frequency bands.
PIM Site Analyzer Alpha
Rosenberger presents its brand new broadband passive intermodulation analyzer “PIM Site Analyzer Alpha” for multi-function on-site tests and measurements of active and passive elements – whether outdoor or indoor systems, RF or Fiber Optic. The new analyzer features PIM detection over CPRI and offers exchangeable filter units.
Desktop Analzer has been designed for laboratory and manufacturing applications to quickly and accurately measure the intermodulation characteristics, as well as on tower mounted devices, e.g connectors, cables and other passive components. The transportable PIA can also be used for a precise analysis of the RF infrastructure quality and performance of radio base stations and operates in LTE 700, AMPS, EGSM, DCS, PCS, UMTS, UMTS II / LTE / BRS-EBS and WiMAX frequency bands. They are delivered in a highly shock-proof, stable transport case.
Rack Analyzer with broadband amplifiers, exchangeable filter units and multiplexers, are specially designed for the use in production lines to measure the 3rd, 5th and 7th order intermodulation, but they also can be applied in R&D, laboratory and calibration centers. Rack types are available as “reflected” types or “reflected & transmitted” types, which operate in LTE 700, AMPS, EGSM, DCS, PCS, TD-SCDMA, UMTS II / LTE / BRS-EBS and WiMAX frequency bands.
MASER SERVICE ASSURANCE - Improving the customer experience
Maser’s Service Assurance range of solutions helps survey, analyse, test and optimise mobile, Ethernet and cable networks to provide a better quality of service. Our service assurance solutions from leading vendors such as:
To go to our Service Assurance section please click here.
Maser Network Services
Maser Network Services
Maser provides Mobile Network implementation services for both Macro. We are specialise in Macro and In-Building Solution Design, Installation, Commissioning, Integration and Troubleshooting of Active (Fibre Optic) and Passive DAS (Distributed Antenna Solutions).
Our experience include Mobile Coverage Testing and Report Preparation, Fibre Installation, BTS Commissioning, and PIM testing/rectification services. We have been long term network assurance partners with Telstra, Optus, VHA, VicTrack on UHF, 2G, GSM-R, 3G and LTE technologies.
Maser and our range of world leading RF partners have extensive experience throughout Australia and overseas within the telecommunications industry. “Our promise is to deliver Industry standard solutions and services within an agreed timeframe and on budget to our customers”.
RF Coverage Testing
RF Planning ,Design and Implementation (Macro,& Rail Tunnel)
Active DAS Commissioning and System integration services
Maser One-Stop Procurement Service
Maser Procurement Services
Maser can provide a cost and resource effective ‘one-stop-shop’ type service to customers looking for a single supplier to provide their RF network components. Maser provide this service using their own stable of world leading suppliers and will source from other vendors as needed to simplify the procurement process.
Maser Supply & Commercial Agreements
Maser has extensive capabilities and experience in negotiating supply agreements. Maser is an active supplier to, and importantly have supply agreements in place with, the many telecommunications service providers in Australia including Telstra, SingTel Optus, Vodafone, Vocus/M2 and TPG. We also have agreements in place with many of the major network build contractors involved with rolling out and maintaining RF sites across Australia.
Maser has extensive logistics capabilities and experience that is required to fulfill major network roll-out requirements in a timely manner. We use a pool of freight forwarders to keep freight costs down, have our own warehouses for storing network equipment and spares, and are experienced at delivering large items (e.g. base station antennas) around Australia.
Maser partners with the following market leading vendors to provide outstanding RF Solutions to our customers:
Quench the worldwide search for data
Mobile communication means being available anywhere and anytime, using media and having Internet access. Mobile network operators face the challenge of reliably providing needed capacities for the enormous data volumes and Kathrein is the perfect partner for this task.
Kathrein is the world’s largest antenna manufacturer and every month around 150,000 mobile communication antenna and filter systems leave their plants, and customers around the world place their trust in Kathrein’s technology and quality.
High Performance Compact Antennas
Alpha Wireless designs and manufactures high performance base station antennas for all applications and standards. All antenna designs have optimized radiation patterns which helps to improve overall network performance, and real trials have shown significant throughput and sector capacity improvements.
Alpha prides itself on its expertise and its response times to customer needs, and that’s why many of the world’s major equipment vendors and operators have chosen Alpha for their antenna projects.
Low PIM Compression Connectors
JMA Wireless is the leading global innovator in mobile wireless connectivity solutions that assure infrastructure reliability, streamline service operations, and maximize wireless coverage and mobile data performance.
In Australia Maser supplies JMA’s leading range of compression connectors that dramatically reduce installation time (typically ~1minute), and consistently provides low PIM connectivity that reduces site revisits and increases the RF performance of LTE networks.
Click on the links below to find out more:
High Performance Compact Antennas
Rosenberger provides a wide range of standardised and customised connectivity solutions in high-frequency and fiber optic technologies including special test equipment specifically designed for commissioning wireless operator sites.
Maser offers Rosenberger’s PIM Analyzers and mobile communication coax and fiber optic site solution products for the complete connectivity of radio base stations – from the BBU/PSU to the RRH and antenna.
Click below to find out more:
Once Source. Global Site Solutions
The World’s Most Advanced RF Router
Dali Wireless RF Router Platform transcends the features typically associated with distributed antenna systems (DAS), combining RF, digital, and optical technologies developed by the company to deliver performance far beyond that of any system.
With this, Dali Wireless is able to deliver the high capacity of a macro-cell, the flexible coverage of DAS, with the tiny footprint of a pico-cell, anywhere and anytime.
Click below to find out more:
Like No Other Antenna Alignment Tool
Multiwave’s Smart Aligner System is the most advanced antenna alignment system on the market. Smart Aligner provide convenience, easy portability, and verifiable reporting for antenna alignment, which will increase antenna performance and maintain faster data speeds.
MultiWave Sensors alignment solutions are being used by companies worldwide, including Ericsson, Bechtel Corporation, AT&T, Verizon, Sprint, GOGO and other carriers.
Click below to find out more:
The attached Vodafone approved list of JMA jumpers is NOW available for purchase from Maser. Sold in box quantities only. To place an order - please email us at SalesRF@maser.com.auread more
Dali Wireless Advances Evolution toward 5G Mobile Networks with Innovative Virtual Fronthaul Solution
Maser's partner Dali Wireless will unveil a new platform facilitating rapid network expansion, densification, and fronthaul transition to 5G at the Mobile World Congress 2017. Please click below to read the full press release or contact Maser at firstname.lastname@example.org...read more
Vodafone have announced that factory-made JMA external RF jumpers are now approved for unrestricted use in the Vodafone network. JMA jumpers are the industry's ONLY Laser Welded jumper. They have unmatched dynamic PIM performance at -160 db and the optical process...read more
